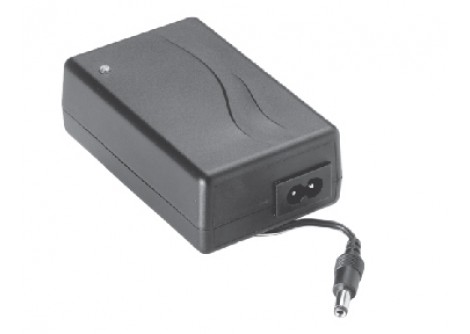

PBN6C Series PBN6C - Three Step Battery Charger

Features
  • 35W - 40W
  • Three Step Charger
  • LED Indicator with Tri Colours
  • Orange - Quick Charge
  • Yellow - Absorption Charge
  • Green - Float Charge
Specification Sheet Make a Sales Enquiry

PBN6C - Three Step Battery Charger

Specifications


INPUT
Input voltage 90-264Vac
OUTPUT
Model numbers PBN6C-12H PBN6C-24H

Output Voltage

* Cycle mode

* Standby mode

12V

14.7V ±0.2V

13.8V ±0.3V

24V

29.5V ±0.2V

27.7V ±0.3V
Max. output power 35 W 40 W
Current limit 2.3A ±0.3A 1.3A ±0.2 A
Leakage current 100 uA 200 uA
INDICATORS

Orange - Quick Charge

(constant current)

 12 V  2,3 A 24V  1,3 A

Yellow - Absorption Charge

(constant voltage)

 14,7 V 29,5 V

Green - Float Charge

(constant voltage)

 13,8 V 27,6 V
OPERATING
Load regulation 200 mV
Line regulation 100 mV
Switch frequency 45 kHz approx
Ripple 100 mV p-p
Efficiency 81% Typical
Timer 2h ( 30min (also available
with other values)
PROTECTION
Protection Mains fuse. Automatically resetable fuse
protects the charger against wrong polarity.
Insulation class Class II
ENVIRONMENTAL
Temperature range -10 to +40°C
Cooling Free convection
STANDARDS AND APPROVALS
Electrical safety EN 60601-1, EN 60950,
EN 60335-2-29
EMC standards

Medical: EN 60601-1-2

Emission: EN 61000-6-3

Immunity: EN 61000-6-1
MECHANICAL
Mains Input Connection 2pins  IEC320/C8 connector
Output Connection

Standard: DC Plug Connector

Option 1: Battery Clips

See selection table

Dimensions 107 x 67 x 36.5mm
Weight 250g

Selection Table

MODEL NUMBER

OUTPUT

VOLTAGE

OUTPUT

CURRENT

POWER

OUTPUT

CONNECTION
PBN6C-12H 13.8V 2.3A 35W DC Plug
PBN6C-12H-1 13.8V 2.3A 35W Battery Clips
PBN6C-24H 27.6V 1.3A 40W DC Plug
PBN6C-24H-1 27.6V 1.3A 40W Battery Clips
