PB314A SERIES PB314A -RM - Battery Charger System

Features
  • 636 - 1056W PSU for Battery Backup
  • DC UPS Connectable
  • Digital Display System
  • Rack Mounting
  • Constant Float Voltage & Current Limit
  • Circuit Breakers & Alarm Relays
  • Independent Battery Charging Output
  • DC OK & Battery OK Alarms
  • Battery connected test
  • Optional LVD - Battery Low Volts Disconnect
  • Optional Network Connected
  • Optional Battery Temperature Probe
  • OPERATIONS INSTALLATION HANDBOOK AVAILABLE
Specification Sheet Make a Sales Enquiry

PB314A -RM - Battery Charger System

Product Overview

PB314A Series Battery Chargers / DC UPS

The PB314A Series is a family of 13.8Vdc, 27.6Vdc and 55.2Vdc, 624W / 1056W  off-line battery chargers / DC uninterruptable power supplies which operate from 110/240Vac mains power. when connected to a lead-acid battery, these units provide uninterrupted power to a DC load in the event of mains failure.

The PB314A contains a two step current limited float charger, battery charge current limiting AC mains rectifier and battery alarms, battery present detection and optional float voltage temperature compensation (option - T).  It employs high efficiency switching technology, combined with very low output noise which makes it suitable for powering a broad range of loads such as communication equipment, control equipment and alarm systems.

The PB314A is available with a 10BaseT / 100Base TX Ethernet interface (option -N).  This interface supports SNMP V1, XML and an embedded webpage allowing the PB314A to be monitored remotely.

The PB314A is available in 2RU 19" rack mount enclosure.

All models incorporate an alphanumeric LCD display as standard.

Specifications

input
Input Voltage 85-264Vac or 120-360Vdc
Frequency: 47 to 63 Hz
Input Current: 4.1A typical 200Vac
Inrush current: 40A typical cold start 200Vac
Line regulation 60mV maximum
OUTPUT
Output Voltage 13.8Vdc, 27.6Vdc, 55.4Vdc
Output Power 624W - 1056W
Output Current See Selection Table
Load regulation 1% typical
Ripple 160mVp-p maximum
Noise 180mVp-p maximum
Overvoltage shutdown 16.2 to 19.8V latching
Output short circuit protection Indefinite (Autoresetting)
Battery charger short
circuit protection		 Indefinite (Autoresetting)
Load output protection Thermal - Magnetic Circuit Breaker
Battery output protection Thermal - Magnetic Circuit Breaker.
Efficiency 79% typical
PROTECTION
Overvoltage shutdown 16.2 to 19.8V latching
Output short circuit protection Indefinite (Autoresetting)
Battery charger short
circuit protection		 Indefinite (Autoresetting)
Load output protection Thermal - Magnetic Circuit Breaker
Battery output protection Thermal - Magnetic Circuit Breaker.
Isolation

Input - Output: 3KVac 1 min

Input - Ground: 2KVac 1 min

Output - Ground: 500Vac 1min
ENVIRONMENT
Operating temperature

-20°C to +71°C

Derating linearly from 50°C to 71°C to 50% power
Humidity 20-90% relative humidity (non condensing)
Cooling Forced cooling - internal fan
display and alarms
DC OK LED Green On = OK, Voltage-free changeover contact (32V, 1A).
Alarm on failure of AC/DC PSU and tripping of over temperature limit.
AC OK Neon Green On = OK, Voltage-free changeover contact (32V, 1A). Alarm on mains fail.
Charger voltage OK alarm LED Green On = OK, Voltage-free changeover contact (32V, 1A). Alarm on battery low voltage or on opening of battery circuit breaker.
Battery low voltage alarm 11.0V (12V), 22.0V (24V), 44.0V (48V
OPTIONAL FEATURES
Battery charge current Option XXA: The battery charging current limit "XX" amps is set at time of manufacture. Often recommended by battery manufacturer given AH rating of battery.. Or contact Powerbox for more information. See selection table
Battery LVD disconnect Option LVD: For 12V and 24V models, not available in 48V models.
Network enabled Option N: Internal network card in conjunction with PB314A becomes a network enable device combining the benefits of SNMP V1, XML and an embedded webpage.
Temperature compensation

Option T: Temperature probe 2.5M cable

Option T5: Temperature probe 5M cable

Float voltage set to 2.3V per cell at 25°C with compensation of 3.3mV per cell
Output Alarm Connection

Option P:  Phoenix Contact

Mating Connector included
STANDARDS & APPROVALS
C-Tick AS/NZS CISPR11 Group 1 Class A.
Safety UL 60950 Class 1
EMC Emissions comply with AS/NZ CISPR22 Class-B
MECHANICAL
AC input socket IEC320 fused / on off switch
Output termination Cage clamp terminals (-C version)
Output Alarm Connection

Standard DB25 Socket

Mating Connector not included
Load fault current protection 63A circuit breaker
Battery fault current protection 63A circuit breaker
Rack mount size 270 D x 19" W x 2RU H
Weight 5.0 kg

Selection Table

MODEL NUMBER

OUTPUT

VOLTAGE

LOAD

CURRENT

LOAD PK

CURRENT

BATTERY

CHARGE

CURRENT

OUTPUT

POWER


PB314A-12-53-C-XXA 13.8Vdc  46A 53A 5 - 53A 636W
PB314A-12-88-C-XXA 13.8Vdc  76A 88A 10 - 88A 1045W
PB314A-24-27-C-XXA 27.6Vdc  23A 27A 2.5 - 27A 648W
PB314A-24-44-C-XXA 27.6Vdc  38A 44A 5 - 44A 1056W
PB314A-48-13-C-XXA 55.4Vdc  11A 13A 2.5 - 13A 624W
PB314A-48-22-C-XXA 55.4Vdc  19A 22A 2.5 - 22A 1056W

NOTES

1. Output Load Current also includes Battery Charge Current.

2. The Battery Charging Current is factory set. Battery supplier to recommend or contact Powerbox for recommendation battery charge current.  The 'XX" in model number designates the required battery charge current limit.

Technical Illustration

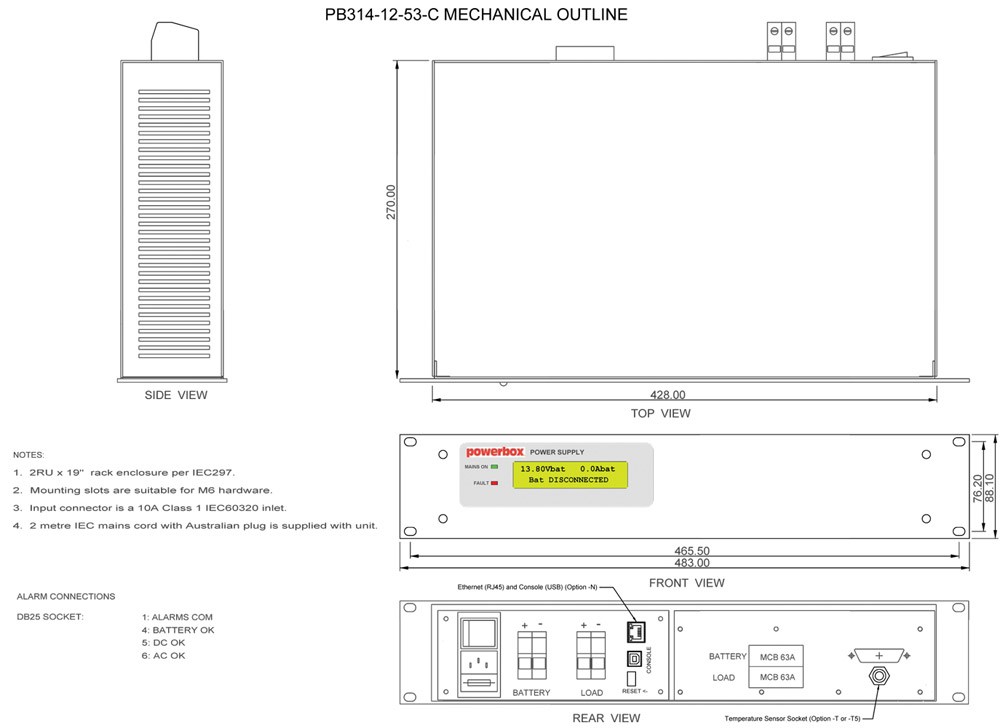

  • PB314A with Option P: Phoenix Alarm contact PB314A with Option P: Phoenix Alarm contact
